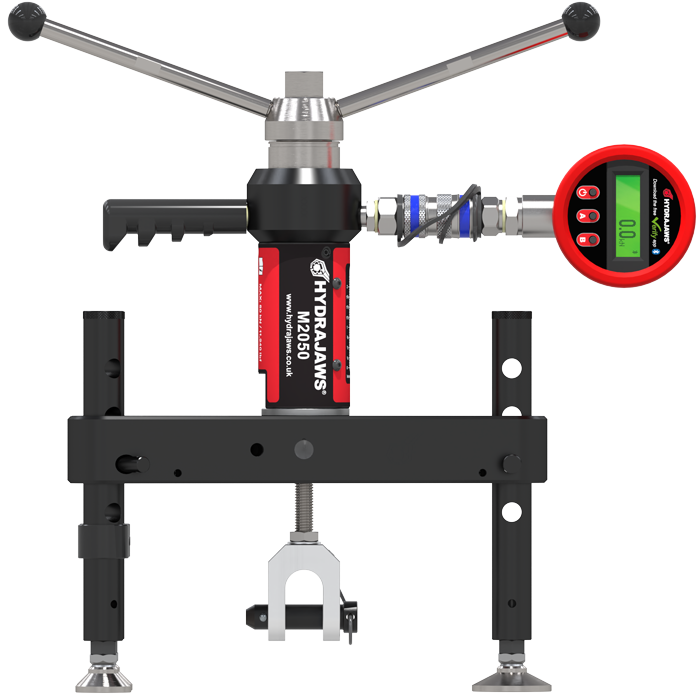

M2050 PRO Medium Heavy Tester Kit

£2,085.00 – £2,434.00

Extending the testing range to cover 0-50kN, the Hydrajaws M2050 PRO Tester Kit enables engineers to validate the correct installation or establish the safe working loads of a comprehensive range of anchors & fixings in line with BS 8539, BS 7883, BS EN 795 and AEFAC-TN05 up to a maximum tensile load of 50kN (11240lbf).

Manufactured to exacting high standards, the Hydrajaws M2050 PRO Tester kit contains a universal set of adaptors allowing a wide range of anchors and fixings used in safety-critical applications to be tested. The three-legged load spreading bridge keeps reaction loads away from the fixing allowing results to be more consistent.

Compatible with the FREE-to-use Hydrajaws Verify PRO App - Digital Reporting System when used with our digital gauge.

Send an Enquiry

Features

  • 0-50kN Dual Scale rechargeable digital gauge compatible with the latest FREE Hydrajaws Verify PRO App (detachable for calibration, reduces carrier return costs).
  • 2050 Load spreading bridge featuring height adjustable legs with pin arrangement in six positions with swivel feet giving 30mm of fine adjustment.
  • Turning Handle with 24mm integrated nut (for use in confined spaces)
  • Up to 50mm of stroke
  • The tester is preassembled and accessories can be quickly attached with ease
  • Hydrajaws gauge calibration certificate (valid for 12 months)
  • Supplied in a robust protective carry case with full operating instructions.

Kit includes the following adaptors:

  • M12 Ringbolt Adaptor Clevis
  • Bolt tester adaptor with M12 locking adaptor
  • M10, M12 Threaded button adaptors
  • Six slotted button adaptors: 4.5, 5.5, 6.5, 8.5, 10.5, 12.5mm
  • Metric kits only – M16, M20 & M24 Threaded stud adaptors
  • Imperial kits only – 3/8″ & ½» Threaded button adaptors and 5/8″, ¾» & 7/8″ UNC Long threaded stud adaptor

Documentation

M2050 PRO Tester Kit Product Information

 Download

M2050 PRO Tester Kit Manual

 Download
Reviews

What convinced me to try the Hydrajaws Bluetooth Digital System was the traceability. Being a company that install anchors etc. it is critical to have results and reports that are un-questionable.

A Butcher, Correct Safety Australia

Compramos un medidor Hydrajaws dado que las pruebas de equipos son obligatorias para la construcción de fachadas y los utilizamos para anclajes de argamasa en fachadas de piedra natural. Los medidores de Hydrajaws son flexibles, prácticos y fiables.

Natural Stone Façade Company, Alemania

Utilizamos los medidores Hydrajaws en nuestra organización y estamos muy contentos con el producto y el apoyo que recibimos. Muchos años de experiencia y desarrollo por parte del equipo de Hydrajaws significa que sus equipos están optimizados y cumplen su propósito en este mercado en constante evolución, pensando en la digitalización. La reciente actualización a medidores digitales y sistemas Bluetooth ofrece más fiabilidad y trazabilidad y es un cambio positivo para todos nosotros. Lo que también es tranquilizador para nosotros es el apoyo que recibimos.

Mirka Valovicova, Director Técnico, fischer fixings UK Ltd
