M2008 Heavy Duty Tester Kit
£2,920.00
The portable self-contained M2008 Heavy Duty Tester meets the demand for proof load testing larger fixings up to 145kN (32597lbf) in line with BS 8539 and AEFAC-TN05. Applications include high load expanding and resin anchors, holding down bolts for stanchion base plates, base plate fixings for column lighting, anchorage for crash barriers and safety fences, anchorage for stadium crush barriers and bridge parapet anchors.
With optional extras, applications include rebar pull-out test (with rebar adaptors), pad eye load test, large ringbolt, and eyebolt testing (with HD Ringbolt Clevis).
Having a lightweight aluminium height adjustable load spreading bridge means the weight combined with the tester is only 14kg, which is lighter and more convenient to apply than a separate hydraulic pump and cylinder arrangement.
Compatible with the FREE-to-use Hydrajaws Verify PRO App - Digital Reporting System.
Features
- 0-145kN Dual Scale rechargeable digital gauge compatible with the latest FREE-to-use Hydrajaws Verify PRO App (detachable for calibration, reduces carrier return costs).
- 2008 lightweight aluminium offset triangular load-spreading bridge with nine height positions. The swivel feet offer fine height adjustment.

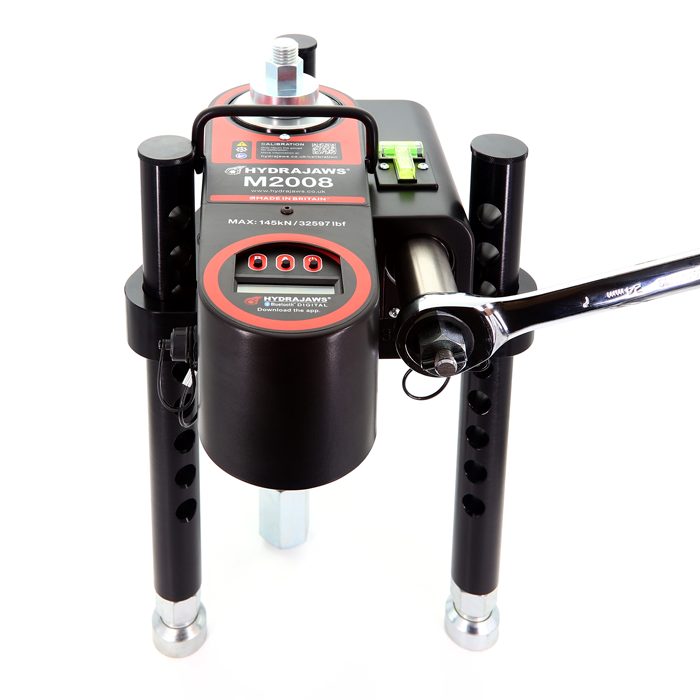

- Load application is achieved via a 24mm ratchet handle driving a hydraulic multiplier.
- Spirit level indicates the overall balance of the test rig.
- 10mm eyehook installed for attaching a lanyard as appropriate.
- The foam filler can accommodate four rebar adaptors.
- Hydrajaws gauge calibration certificate (valid for 12 months).

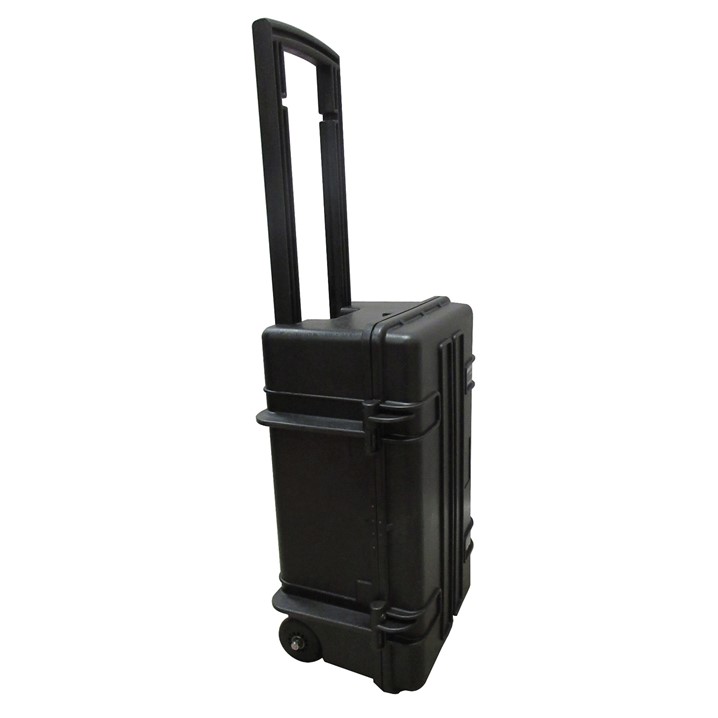

- It is supplied in a wheeled military-grade robust carry case with a telescopic handle and full operating instructions.
Kit includes the following adaptors:

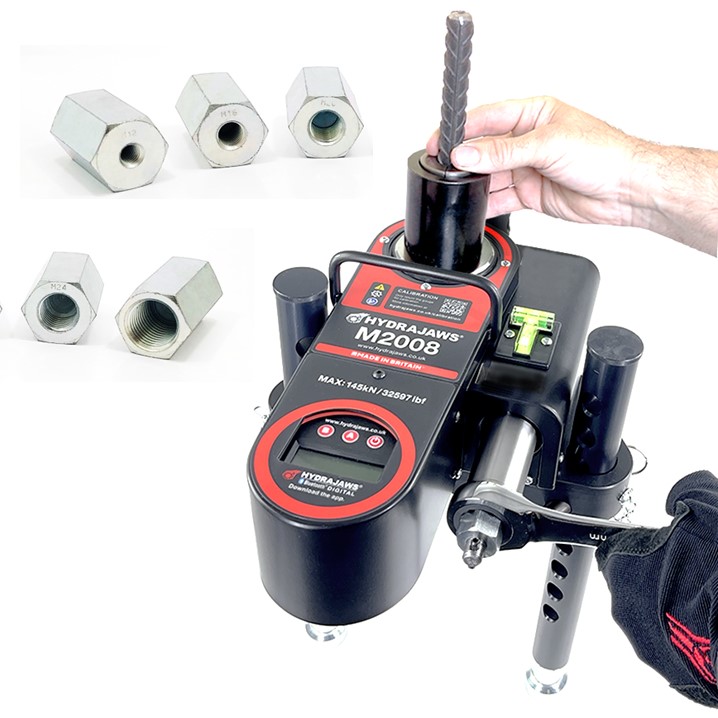

- 5 x threaded adaptors M20>M12, M20>M16, M20>M20, M20>M24 & M20>M30. Imperial UNC equivalent threaded stud adaptors are available.
Optional Extras
- Heavy-duty ringbolt clevis for pad eye load testing, large ringbolt and eyebolt testing (Part #: 161-095).
- Rebar Adaptors to connect to various sizes: 6mm, 8mm, 10mm, 12mm, 14mm, 16mm, 18mm, 20mm & 22mm.
- A wider span load-spreading bridge is available however it only allows a maximum load of 125kN (Part #: 141-005).
Applications
- Proof and failure load testing of most fixing types
- High load expanding and resin anchors
- Cast in sockets and channel
- Holding down bolts for stanchion base plates
- Base plate fixings for column lighting
- Anchorage for crash barrier and safety fences
- Anchorage for stadium crush barriers
- Bridge parapet anchors
