M35+ Dual Load Capacity Digital Pull Tester

£1,875.00 – £2,295.00

The world's first lightweight modular digital pull tester with Easi-Effort® Technology.

The Hydrajaws M35+ Easi-Effort® Dual Load Capacity Digital Pull Tester can test up to 35kN/7868 lbf (Standard Kit) or 65kN/14613 lbf (Dual Kit) on the same device, with an easily configurable optional bridge setup, without needing a separate tester.

This lightweight and ergonomic pull tester is enhanced by Easi-Effort® Technology, increasing testing frequency and reducing operator effort. It is an essential tool for carrying out pull testing procedures in line with BS 8539, BS 7883:2019, BS EN 795:2012, BS 8610, NASC Guidance Note TG4:19 and AEFAC-TN05.

The Hydrajaws M35+ arrives in a compact, tailor-made rugged rucksack, engineered for easy transportation to even the most remote and challenging job sites. Watch the video here.

It comes complete with a comprehensive full-colour user manual and backing and support from our technical team at Hydrajaws.

Compatible with the FREE-to-use Hydrajaws Verify PRO App - Digital Reporting System.

Send an Enquiry
World's first dual load capacity digital pull tester

Features

  • The M35+ boasts impressive ‘Easi-Effort®’ technology increasing testing frequency and reducing operator effort.
  • Lightweight and Durable – Crafted from top-grade materials including titanium, the Hydrajaws M35+ is the most lightweight pull tester on the market and is built to withstand the toughest environments.
  • Modular Dual Load Capacity – The powerful tester not only has a 3.5-ton capacity in standard guise, but it also has 6.5-ton capacity with further optional load spreading bridges.
  • Advanced-Data Logging with FREE-to-use App – Equipped with state-of-the-art data logging capabilities, the M35+ allows for real-time monitoring and tracking of pull testing results via the free-to-use Hydrajaws Verify App
  • Dual-scale rechargeable digital gauge gives an accurate and clear display of the readings.
  • Hydrajaws gauge calibration certificate (valid for 12 months).
  • It is supplied in a tailor-made rugged rucksack, engineered for easy transportation.
  • Full user manual supplied.

Metric Kit includes the following adaptors:

  • Bolt test adaptor
  • 20mm and 24mm clevis forks
  • 5 slotted button adaptors: 6.5, 8.5, 10.5, 13, and 16.5mm
  • 6 threaded button adaptors: M6, M8, M10, M12, M16 and M20

Imperial Kit includes the following adaptors:

  • Bolt test adaptor
  • 20mm and 24mm clevis forks
  • 5 slotted button adaptors: 6.5, 8.5, 10.5, 13, and 16.5mm
  • 6 threaded button adaptors: 1/4″, 5/16″, 3/8″, 1/2″, 5/8″, 3/4″ UNC

Dimensions

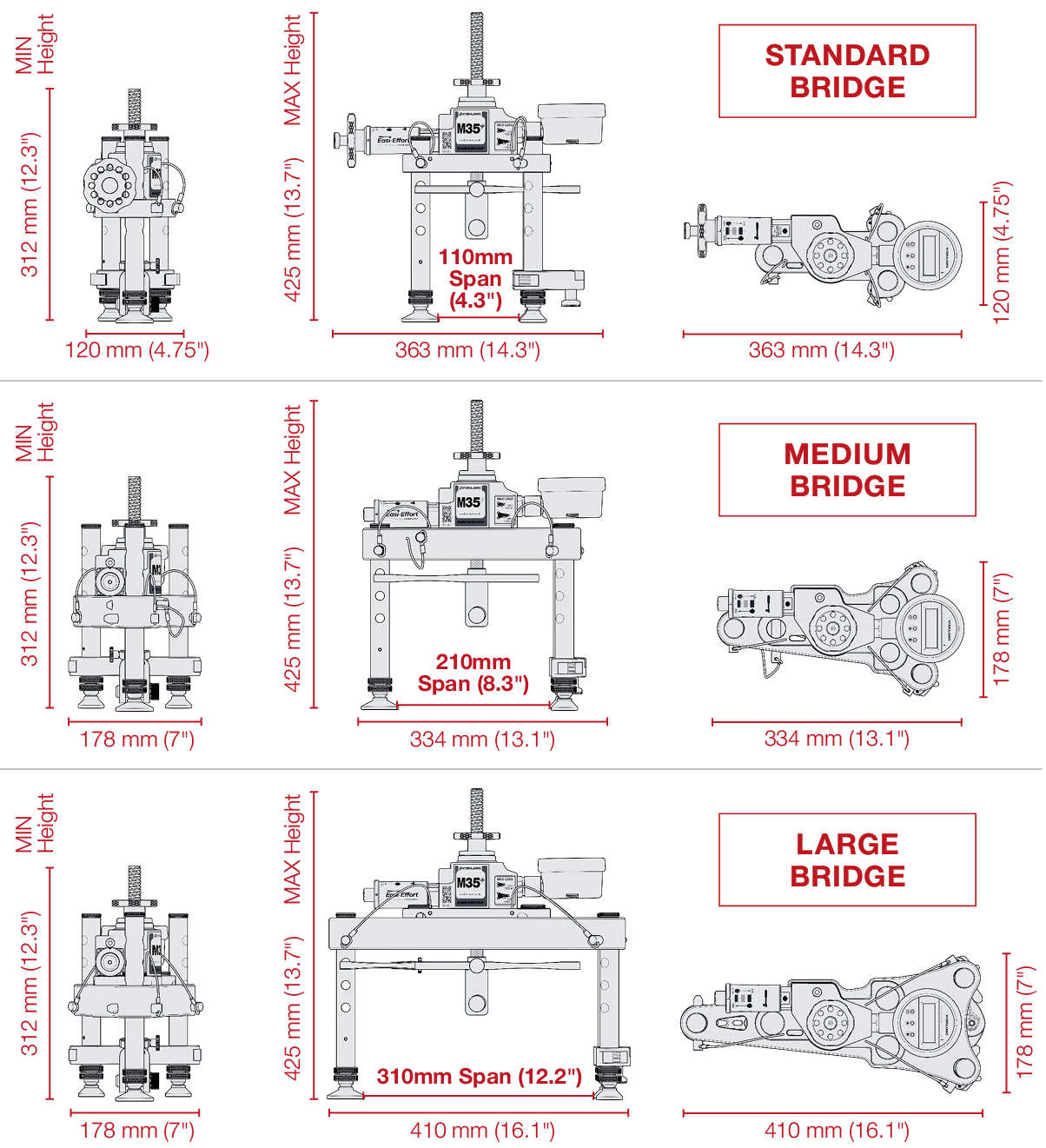

Bridge Footprint and Tester dimensions

The standard bridge can test most applications up to 35kN (7,868lbf).

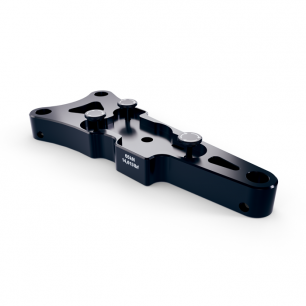

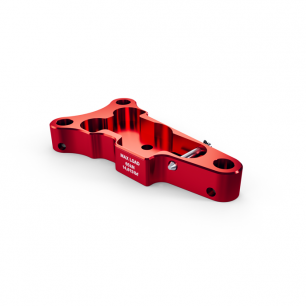

Two optional bridges are available for loads up to 65kN (14,613lbf) and allows for greater span and spacing requirements.

Video

Documentation

M35+ Dual Load Capacity Digital Pull Tester Product Information

 Download

M35+ Dual Load Capacity Digital Pull Tester Manual

 Download
Reviews

We used the brand new ultralight M35 Hydrajaws test rig at Foxwoods Academy, Omega Red Group being the first height safety provider in our industry to utilise this fantastic piece of equipment.

This was so easy to use, showing the great advancements that HYDRAJAWS LIMITED is making in this space.

Omega Red Group

We have just received our new M35+. Looking forward to using this great bit of equipment- we had the privilege of trying this out at Hydrajaws HQ and were amazed at the bit of kit. We just knew our company had to have this.

SJB Safety Services Ltd

Today I witnessed the testing of our commercial property anchor points using our new Hydrajaws M35+ tester. Amazed at how lightweight and versatile it is, as we needed to utilise the smaller pin adapter (which came as standard with the kit !) for one of the eyebolts. Using the verify app was super easy and we now have audit records stored in the cloud. This is a superb quality engineered product which I would highly recommend.

Rushcliffe Estates Ltd
