Shear Tester Add-on

SKU: 221-036

£1,500.00

The Hydrajaws Shear Tester Add-on is a versatile and reliable solution for testing shear loads on anchors in construction materials like concrete and masonry.

Designed to integrate seamlessly with a M2000, M2050 or M35+ load cell (available separately), this kit ensures precise shear load verification for your anchors.

NOTE: The ‘Shear Tester Add-on Kit’ does not include a tester – this frame is compatible with Hydrajaws M35+, M2000 and M2050 Testers (Available separately)

Send an EnquiryBuy Online

Features

Key features include a shear bracket equipped with a PTFE gasket to minimise friction, a keyhole for clear substrate observation, and a datum boss for accurate displacement measurement. The shear test reaction box mounts securely to the substrate using four anchors, with spacing tailored to typical UK and European brick centres, ensuring compatibility and consistency.

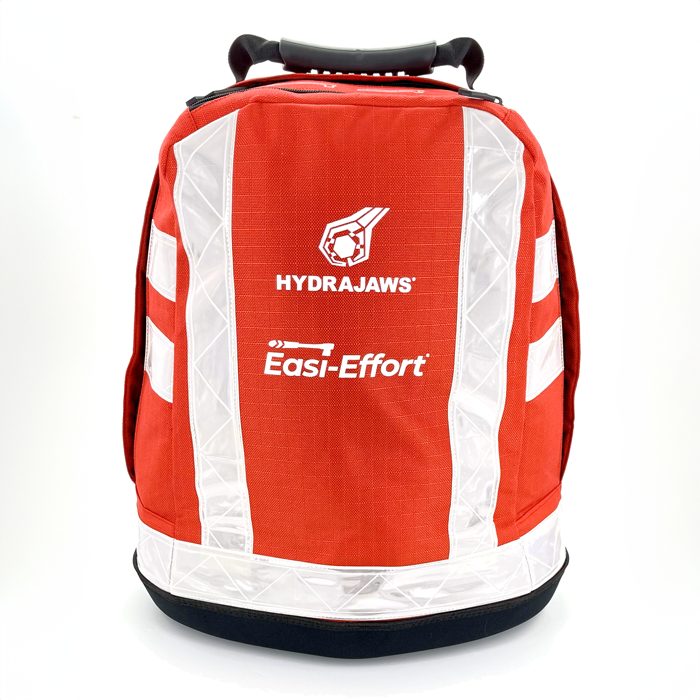

The Shear Tester is packaged in a durable Hydrajaws rucksack, containing all the essential accessories needed for efficient shear testing.
With its robust design and comprehensive components, the Hydrajaws Shear Tester Add-on Kit is the ultimate tool for professionals who demand accuracy and efficiency in their anchor testing.

Kit contents:

NOTE: The ‘Shear Tester Add-on Kit’ does not include a tester – this frame is compatible with Hydrajaws M35+, M2000 and M2050 Testers (Available separately).
Kit includes the following accessories:
  • Shear Test Reaction Frame
  • Shear Bracket and Gasket
  • 500mm Drop Rod
  • M2000/2050 Drop Rod Adaptor
  • Shear Tester Bush Adaptors (6.5mm, 8.5mm, 10.5mm, 13.0mm, 16.5mm, 20.5mm)
  • Threaded Buttons (M6, M8, M10, M12, M16, M20)
  • 24mm Open Ended Spanner
  • Supplied in Hydrajaws Rucksack

Available separately (If your tester does not include them):

  • (For use with M35+) Thrust Nut
  • 22mm Ratchet Ring Spanner



TECHNICAL DATA

  • Rucksack dimensions:
    400 x 450 x 235mm (15.75 x 17.72 x 9.25″)
  • Weight: 15 kg (33.1 lbs)
  • Part #: 221-036

Documentation

Shear Tester Kit Product Information

 Download

Shear Tester Setup Guide

 Download

Training

This 30-minute course gives delegates the skills to safely operate the Hydrajaws Shear Tester add-on. A certificate of competence will be issued upon completion and a passing grade of 80% in this course. On completion of the course, access will expire and will no longer be available.



Course details
