Safety Lifeline Cable Tester KIT 3
SKU: 030-009£2,455.00

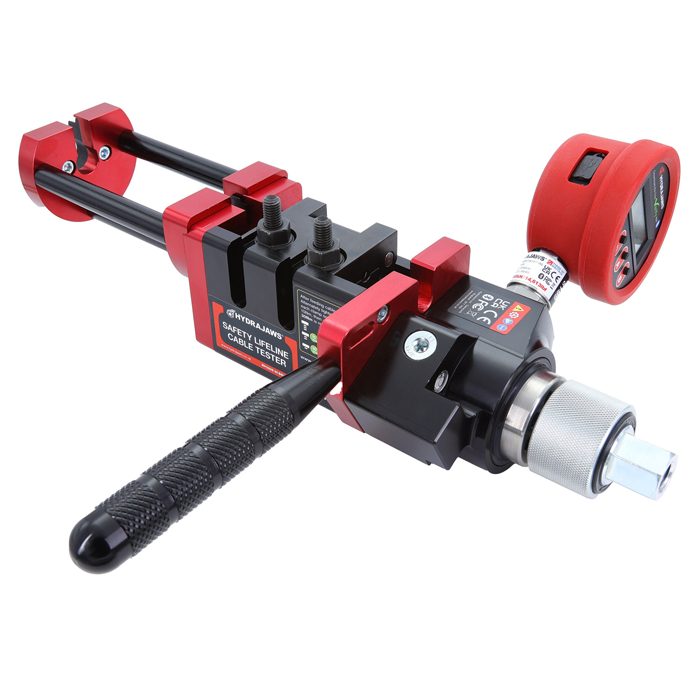

The Hydrajaws Safety Lifeline Cable Tester KIT 3 is a standalone kit enabling engineers to validate the installation of swaged components on newly installed or existing engineered lifeline systems to ensure compliance with BS 7883 up to a maximum tensile load of 20kN.
Manufactured to exact high standards, the Hydrajaws Safety Lifeline Cable Tester clamps directly to the 8mm wire rope. It comes with all the accessories to test existing installations including those with long-terminating assemblies without any additional parts needed. Kit also includes an 80Nm Verify Torque digital torque wrench adaptor.
Compatible with the FREE-to-use Hydrajaws Verify PRO App - Digital Reporting System.
Features
- 0-25kN Dual Scale rechargeable digital gauge compatible with the latest Hydrajaws Verify App
- Cable test frame with extension bars
- Single hinge cable arrangement with swing bolt design

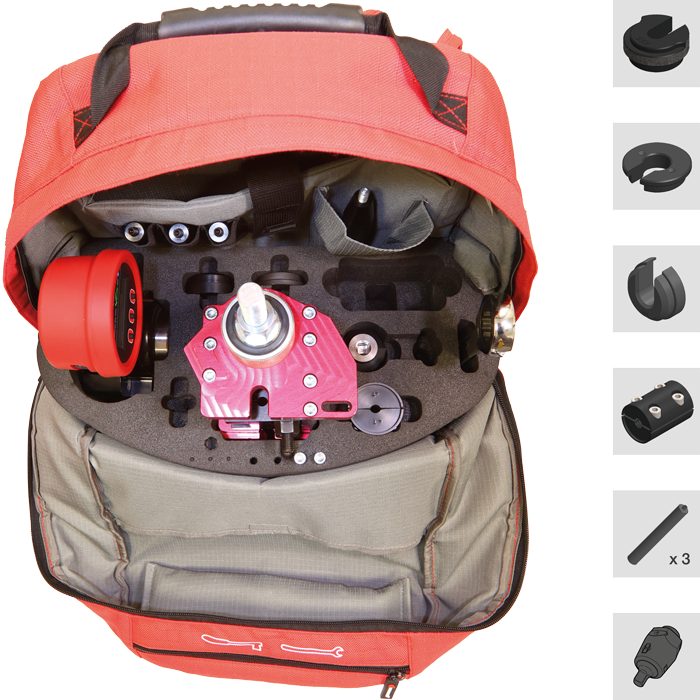

- Supplied in a robust protective rucksack
- Full operating instructions included.
The kit includes the following accessories:
- Hydrajaws 80Nm Verify Torque
- 24mm ratchet spanner
- Ratchet wrench with 17mm socket
- 14mm spanner
- Ball drivers
- 8mm barrel clamp
- 12mm slotted adaptor
- Extension collar insert 12mm
- Extra extension rods
- Knurled adaptor 8mm (10mm & 12mm optional)
- 6mm hex key
- Tool lanyards
